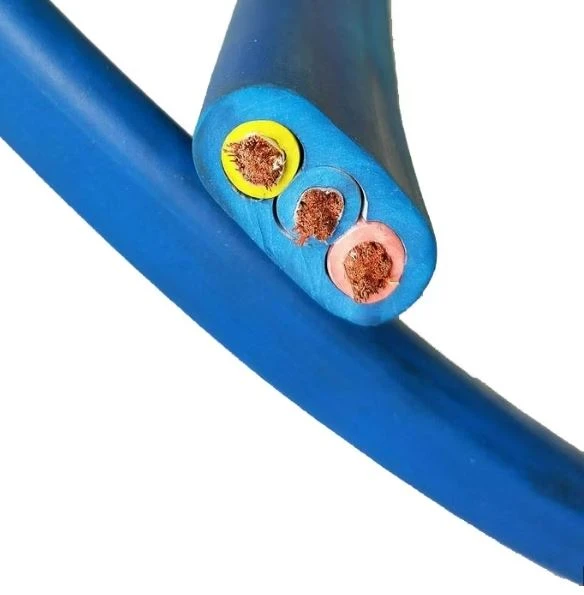

Shaanxi Jinshenghong Cable Co., Ltd. yog ib lub tuam txhab txhim khu kev qha tshaj plaws thiab cov chaw muag khoom ntawm 3 cores thiab 4 cores hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale zoo customized khoom ntawm tus nqi qis los ntawm peb lub hoobkas. Rau cov qauv dawb thiab cov khoom pheej yig, tiv tauj peb tam sim no.
Khoom Description
Flat Tshwj xeeb of elevator Cable
|
Tus coj
|
superfine tooj liab strands acc. rau VDE 0295, chav kawm 5
|
|||
|
Rwb thaiv tsev
|
sib xyaw pvc, tiv taus roj, nplaim taws ua haujlwm thiab tus kheej - tawm
|
|||
|
Xim
|
acc. rau 227IEC (xim av, xiav, dub, ntsuab / daj)
5 cores lossis ntau dua nrog tus lej dub nrog dawb digital coding |
|||
|
Sheath
|
Butadiene-acrylonitrile roj hmab; resistant rau roj, nplaim retardant thiab tus kheej -tawm;
|
|||
|
Xim
|
Dub (RAL9005) lossis Grey (RAL 7001)
|
|||
|
Txuj
|
acc. TS EN 50265-2-1 thiab IEC 60332-1 - Ntu 265-2-2: VDE 0482
|
|||
|
Rated voltage
|
Tsawg dua lossis sib npaug rau 1.5mm: 300/500V Ntau dua lossis sib npaug rau 1.5mm: 450/750V
|
|||
|
Test voltage
|
Tsawg dua lossis sib npaug 1.5mm: 2500V Ntau dua lossis sib npaug 1.5mm: 3000V
|
|||
|
Yam tsawg kawg bending radius
|
0.3m Tsawg dua lossis sib npaug L Tsawg dua lossis sib npaug li 0.6M
|
|||
|
Hlawv vertically xeem
|
GB/T1 8380.1-2001, IEC60332-1:1993 kev xeem
|
|||
|
Dhau tus qauv
|
GB5023.6, IEC60227-6, EN50214.
|
|||
|
Qhov kub thiab txias
|
-15℃rau +70 degree
|
|||
Cov khoom parameter
Flat Tshwj xeeb of elevator Cable
|
Tus coj |
Rwb thaiv tsev |
Sheath |
Conductor Resistance ntawm 20℃(max) ohms / km |
Kev ntsuas tam sim no ntawm 40℃Amps |
||||
|
Nominal Area nyob rau hauv |
Nos. & Dia. ntawm kab |
Nominal Thickness |
Nominal Core Dia |
Nominal Thickness hli |
Kwv yees tag nrho Dimensions |
|||
|
Sq.mm |
Nos./mm |
mm |
mm |
mm |
Thickness hli |
Dav mm |
||
|
1.50 |
22/0.30 |
0.80 |
3.25 |
1.30 |
6.00 |
15.80 |
12.10 |
14 |
|
2.50 |
36/0.30 |
0.90 |
3.84 |
1.30 |
6.50 |
18.00 |
7.41 |
18 |
|
4.00 |
56/0.30 |
1.00 |
4.50 |
1.45 |
7.60 |
21.00 |
4.95 |
26 |
|
6.00 |
85/0.30 |
1.00 |
5.30 |
1.50 |
7.90 |
24.30 |
3.30 |
31 |
|
10.00 |
140/0.30 |
1.00 |
6.50 |
1.80 |
9.90 |
29.70 |
1.91 |
42 |
|
16.00 |
226/0.30 |
1.00 |
8.00 |
1.95 |
11.80 |
36.00 |
1.21 |
57 |
|
25.00 |
354/0.30 |
1.20 |
10.10 |
2.00 |
14.70 |
15.10 |
0.780 |
72 |
|
35.00 |
495/0.30 |
1.20 |
11.50 |
2.00 |
16.20 |
50.10 |
0.554 |
90 |
|
50.00 |
703/0.30 |
1.40 |
13.60 |
2.20 |
18.30 |
58.10 |
0.386 |
115 |
|
70.00 |
440/0.45 |
1.40 |
15.30 |
2.20 |
20.00 |
66.50 |
0.272 |
143 |
|
95.00 |
475/0.50 |
1.60 |
18.00 |
2.40 |
23.50 |
11.30 |
0.206 |
165 |
Cov khoom siv
CovFlat Tshwj xeeb of elevator Cableyog ib qho tseem ceeb ntawm lub tshuab of elevator, ua kom muaj kev sib kis ntawm lub zog thiab tswj cov teeb liab ntawm lub tsheb of elevator,
tswj vaj huam sib luag, thiab lwm yam khoom siv. Nws yog dav siv nyob rau hauv cov neeg nrog caij elevators, freight elevator, thiab lwm yam elevators.
Lub tiaj tus txheej txheem ntawm lub cable tso cai rau kev yooj yim installation thiab qhov chaw optimization nyob rau hauv elevator shafts thiab tswj txee.
Cov khoom ntim thiab kev thauj mus los
Jinshenghong Cable kom ruaj ntseg ntim thiab kev thauj mus los ntawm lubFlat Tshwj xeeb of elevator Cable.
Lub cable yog ua tib zoo coiled thiab ntim rau hauv cov ntaub ntawv tiv thaiv kom tsis txhob muaj kev puas tsuaj thaum caij tsheb npav.
Kev saib xyuas tshwj xeeb yog coj los tswj cov kab ke kev ncaj ncees thiab kev sib haum xeeb.
Khoom thiab tuam txhab zoo
- Qhov chaw-Txuag Tsim: Kev teeb tsa lub tiaj tiaj ntawm lub cable tso cai rau kev teeb tsa yooj yim thiab qhov chaw ua kom zoo dua qub hauv elevator shafts thiab tswj cov txee.
- Txhim khu kev ua tau zoo: Cov kab hluav taws xob siab - cov ntaub ntawv zoo thiab kev tsim kho kom ntseeg tau lub zog thiab cov teeb liab kis tau tus mob, ua rau lub elevator muaj kev nyab xeeb thiab ua haujlwm tau zoo.
- Dav Daim Ntawv Thov Ntau Yam: Cov kab hluav taws xob tsim nyog rau kev teeb tsa hauv ntau hom of elevator thiab kev siv, suav nrog cov neeg caij elevator thiab freight of elevator.
- Kev Ua Raws Cai thiab Ntawv Pov Thawj: Lub cable ua raws li cov qauv kev lag luam thiab cov ntawv pov thawj, muab kev lees paub ntawm nws qhov zoo, kev nyab xeeb, thiab kev ua haujlwm zoo.
- Kev txawj ntse thiab kev paub: Nrog ntau xyoo ntawm kev paub hauv kev lag luam cable, Jinshenghong Cable muaj cov ntaub ntawv pov thawj ntawm kev xa cov khoom txhim khu kev qha thiab kev pabcuam zoo rau cov neeg siv khoom.
FAQ
Q1: Cov kab no puas tuaj yeem siv rau hauv ob qho tib si neeg caij tsheb thiab thauj khoom thauj?
A: Yog, nws yog qhov tsim nyog rau kev teeb tsa hauv ob qho tib si neeg caij tsheb thiab thauj khoom thauj, muab lub zog txhim khu kev qha thiab cov teeb liab kis tau tus mob hauv ntau hom of elevator.
Q2: Puas yog lub cable muaj nyob rau hauv cov txheej txheem sib txawv?
A: Yog lawm, lub cable muaj nyob rau hauv cov txheej txheem sib txawv, suav nrog ntau tus lej ntawm cov cores, kom haum rau cov kev xav tau ntawm lub elevator.
Q3: Puas yog lub cable ua tau raws li cov qauv kev nyab xeeb rau kev siv of the elevator?
A: Yog, lubFlat Tshwj xeeb of elevator Cableua raws li cov qauv kev nyab xeeb thiab cov kev cai siv rau lub tshuab of elevator, ua kom muaj kev nyab xeeb thiab txhim khu kev qha.
Q4: Lub cable puas tuaj yeem ntsia tau rau hauv qhov chaw sab nraum zoov lossis raug pom?
A: Qhov tsim nyog ntawm cable rau sab nraum zoov lossis qhov chaw raug nyob ntawm qhov tshwj xeeb cable variant thiab cov ntaub ntawv sheath. Thov sab laj Jinshenghong Cable rau qhov kev xaiv tsim nyog rau koj daim ntawv thov.
Q5: Lub cable puas tuaj yeem hloov kho kom tau raws li qhov project tshwj xeeb?
A: Yog, Jinshenghong Cable muaj cov kev xaiv kho kom haum raws li qhov project tshwj xeeb. Tiv tauj peb los tham txog koj qhov kev xav tau kev hloov kho.
tiv tauj peb
Xaiv Jinshenghong Cable'sFlat Tshwj xeeb of elevator Cablerau txhim khu kev qha thiab ua tau zoo zog thiab teeb liab kis tau tus mob nyob rau hauv elevator systems.
Hu rau peb hnub no los tham txog koj cov kev xav tau tshwj xeeb, tso daim ntawv xaj, lossis thov cov ntaub ntawv ntxiv.
