Khoom Description

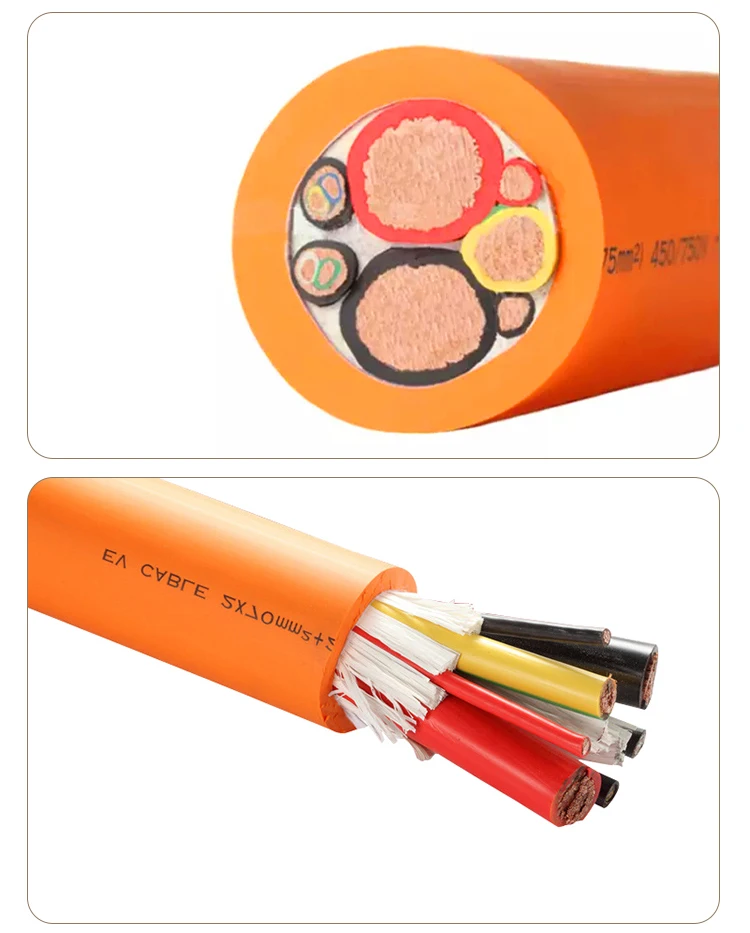

CovTshiab Zog Hluav Taws Xob Tsheb Charging CableKev tsim kho:
1.Conductor: Cov kab hluav taws xob muaj ntau yam khoom siv tooj liab, uas muaj kev tiv thaiv qis thiab siab conductivity kom muaj txiaj ntsig nqa tam sim no.
2.Insulation: Txhua tus neeg xyuas pib yog insulated nrog cov khoom zoo insulating, xws li PVC (Polyvinyl Chloride) lossis TPE (Thermoplastic Elastomer). Qhov rwb thaiv tsev no tiv thaiv hluav taws xob tawm thiab tiv thaiv luv luv.
3.Jacket: Cov txheej txheej sab nraud yog lub tsho uas muaj zog ua los ntawm cov khoom siv ruaj khov xws li thermoplastic lossis roj hmab. Lub tsho no muab kev tiv thaiv txhua yam thiab ua kom lub cev muaj zog.
Cov khoom parameter
|
Taw qhia rau AC Charging Cable rau Lub Tsheb Hluav Taws Xob nrog CQC thiab DEKRA Ob Daim Ntawv Pov Thawj:
|
|
|
1. Tus coj
|

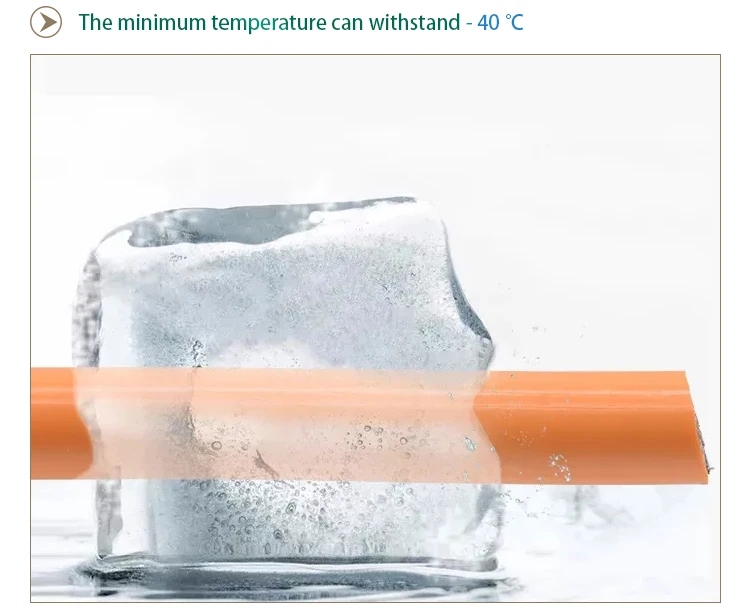

Rated kub:-40 degree -90 degree
|
|
Khoom siv: Tooj liab |
Rated VoltageLub hwj chim: DC 1000V
|
|
2. rwb thaiv tsev
|
Rwb thaiv tsev Resistance: Ntau dua lossis sib npaug rau 0.037MΩ.km ntawm 60 degree Ua raws li CQC1103-215
|
|
Khoom siv: TPE
|

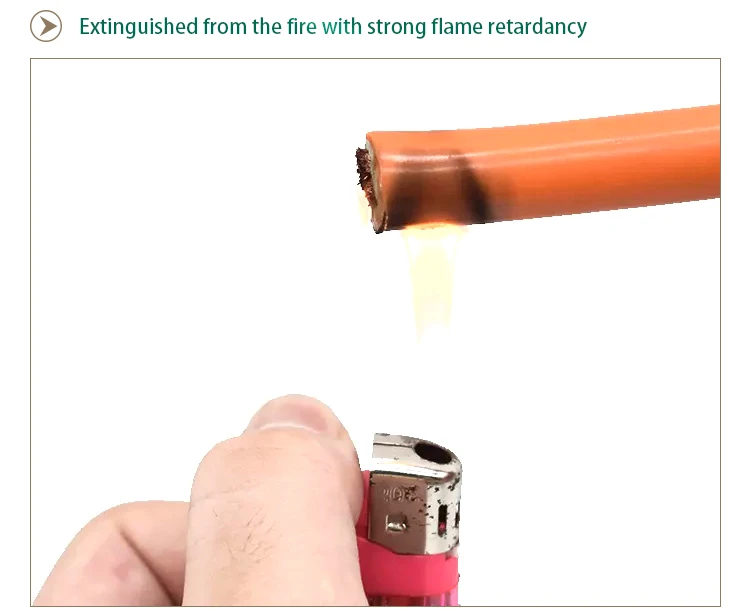

Nplaim Test:VW-1 Test method Ua raws li UL 2556
|
|
Xim: Xim av, Xiav, Daj / Ntsuab |

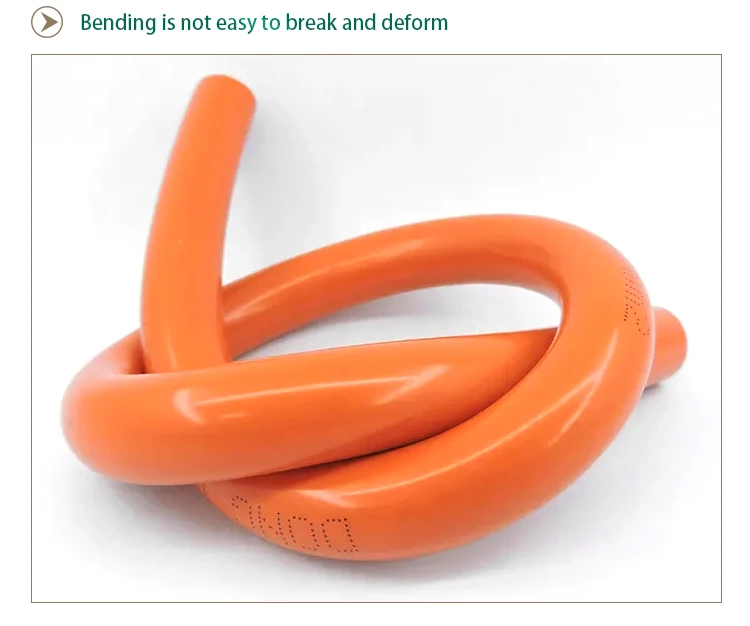

Min:Bending Radius: Ntau dua lossis sib npaug rau 6 * OD
|
|
3. Cov kua nplaum
|
Dielectric voltage:2.5 kVAC / 15 min. Tsis tawg
|
|
Khoom siv: PP Cord |
Tsawg kub cuam tshuam:-40 degree, Tsis muaj kab nrib pleb
|
|
4. Daim kab xev
|
Kub poob siab:150 degree / 1h Tsis muaj kab nrib pleb
|
|
Khoom siv: Non-woven fabrics |
Roj kuj:IRM902, IRM903, Roj av 20h OD Variation Tsawg dua los yog sib npaug rau 15 feem pua Tsis muaj Cracks
|
|
5. Sheath
|
Crush resistance:4 Tsawg dua lossis sib npaug rau Sq Tsawg dua lossis sib npaug rau 35, tsoo quab yuam Ntau dua lossis sib npaug rau 11KN; Sq＞35, crush force Ntau dua lossis sib npaug rau 15KN
|
|
Khoom siv: TPE lossis PU
|
Resistance rau Acid thiab alkali:168h, Tensile Strength Variation Tsawg dua lossis sib npaug li 30 feem pua; Elongation Ntau dua lossis sib npaug li 100 feem pua
|
|
Xim: Txiv kab ntxwv
|
Environmental Requirements:Ua raws li RoHS thiab REACH
|
|
qauv
|
Specifications |
Tus neeg xyuas pib stranding OD |
Tus neeg xyuas pib kuj |
Siv tau tam sim no |
TPE sheath unshielded tiav txheej kab |
PU sheath unshielded tiav txheej txoj kab uas hla PU |
|
EVDC-SS
EVDC-SSPS EVDC-S90S90
EVDC-S90S90PS90
EVDC-S90U
EVDC-S90S90U
|
2 × 16mm2 ntxiv rau 16mm2 ntxiv rau 2 × 4.0mm2 ntxiv 2P(2 × 0.75mm2) ntxiv rau P(8X0.75mm2) |
4.5
|
1.21
|
63A
|
30
|
28.5
|
|
2 × 2 0mm2 ntxiv 25mm2 ntxiv 2 × 4.0mm2 ntxiv 2P(2 × 0.75mm2) ntxiv rau P(8X0.75mm2) |
6.3
|
0.968
|
80A
|
33
|
31.5
|
|
|
2 × 25mm2 ntxiv 25mm2 ntxiv 2 × 4.0mm2 ntxiv 2P(2 × 0.75mm2) ntxiv rau P(8X0.75mm2) |
7.2
|
0.78
|
100A
|
34
|
32
|
|
|
2 × 35mm2 ntxiv 25mm2 ntxiv rau 2 × 4.0mm2 ntxiv 2P(2 × 0.75mm2) ntxiv rau P(8X0.75mm2) |
8.4
|
0.554
|
125A
|
36
|
34
|
|
|
2 × 5 0mm2 ntxiv 25mm2 ntxiv 2 × 4.0mm2 ntxiv 2P(2 × 0.75mm2) ntxiv rau P(8X0.75mm2) |
10.2
|
0.386
|
150/200A |
38
|
36
|
|
|
2 × 7 0mm2 ntxiv 25mm2 ntxiv 2 × 4.0mm2 ntxiv 2P(2 × 0.75mm2) ntxiv rau P(8X0.75mm2) |
12
|
0.272
|
200/250A |
40.5
|
38
|
|
|
2 × 8 0mm2 ntxiv 25mm2 ntxiv 2 × 4.0mm2 ntxiv 2P(2 × 0.75mm2) ntxiv rau P(8X0.75mm2) |
12.8
|
0.238
|
250A
|
42
|
39
|
|
|
2 × 95mm2 ntxiv 25mm2 ntxiv rau 2 × 4.0mm2 ntxiv 2P(2 × 0.75mm2) ntxiv rau P(8X0.75mm2) |
14.3
|
0.206
|
300A
|
44
|
41.5
|
0.75mm2 ~ 2.5mm2 teeb liab xaim tuaj yeem ntxiv, thiab cov teeb liab xaim tuaj yeem tiv thaiv los yog lub ntsiab cable tuaj yeem tiv thaiv. Qhov tshwj xeeb
parameters ntawm cov khoom yog nyob rau hauv lub technical drawings.

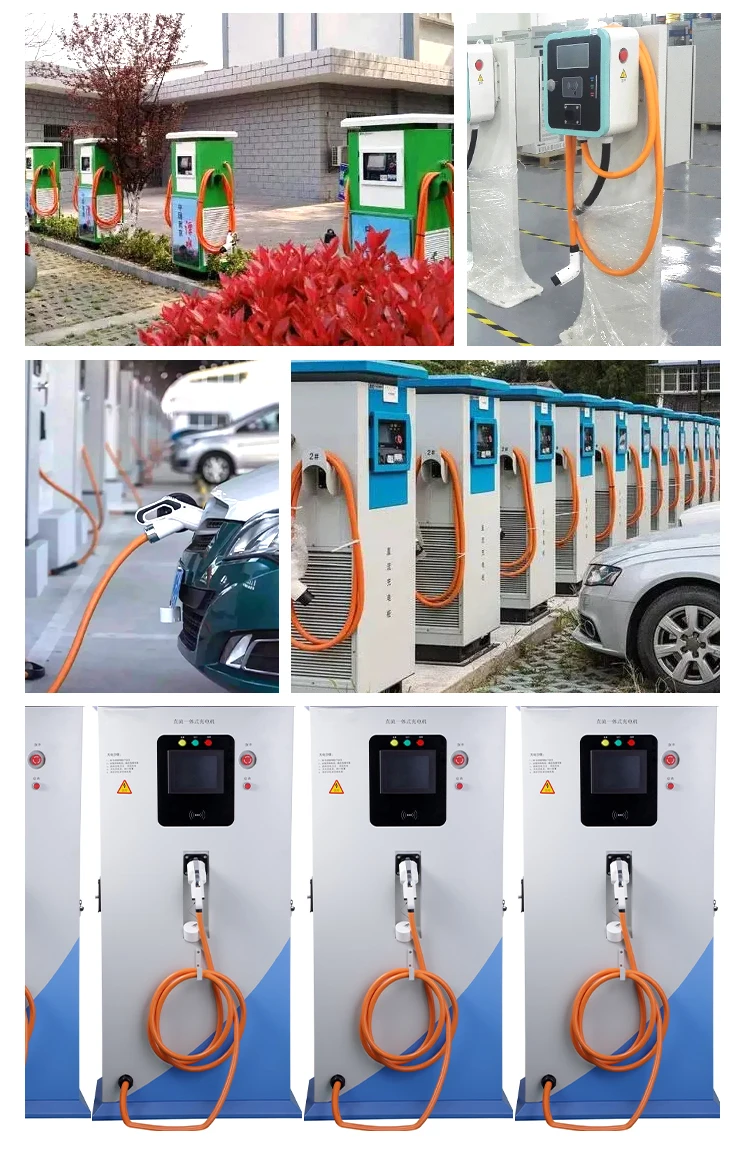

Daim ntawv thov khoom
CovTshiab Zog Hluav Taws Xob Tsheb Charging Cableua haujlwm ua ib feem tseem ceeb hauv EV charging infrastructure:
- Kev them nyiaj yooj yim: Nws ua rau cov tswv EV txuas lawv lub tsheb mus rau cov chaw them nyiaj tau yooj yim, ua kom yooj yim thiab siv tau zoo hauv tsev lossis cov chaw pej xeem.
- Safe Power Transfer: Lub cable ua kom muaj kev nyab xeeb thiab txhim khu kev qha hloov hluav taws xob los ntawm lub chaw them nqi mus rau lub tsheb fais fab, ua raws li cov qauv kev nyab xeeb thoob ntiaj teb.
- Compatibility: Nrog customizable connector xaiv, lub cable tuaj yeem raug kho kom haum rau qhov chaw them nyiaj tshwj xeeb ntawm cov qauv EV sib txawv, kom ntseeg tau tias muaj kev sib haum xeeb thiab yooj yim ntawm kev siv.
Cov khoom ntim thiab kev thauj mus los
Lub cable yog ua tib zoo ntim los tiv thaiv nws thaum thauj. Txhua lub cable yog coiled, qhwv, thiab sau npe rau kev txheeb xyuas yooj yim.
Peb ua haujlwm nrog cov neeg koom tes nrog kev ntseeg siab kom ntseeg tau tias muaj kev nyab xeeb thiab xa khoom raws sijhawm ntawm peb cov khoom rau cov neeg siv khoom cov chaw teev tseg.
Khoom thiab tuam txhab zoo
Jinshenghong Cable's cable muaj ntau yam zoo:
- Kev Ua Haujlwm Siab: Lub cable yog tsim los ua kom tau raws li qhov xav tau ntawm lub tsheb hluav taws xob them, muab kev hloov pauv hluav taws xob zoo thiab kev ua tau zoo.
- Durability: Nrog nws cov khoom siv ruaj khov thiab cov khoom siv lub tsho tiv thaiv huab cua, lub cable yog tsim los tiv thaiv ntau yam kev mob ib puag ncig, ua kom muaj kev ntseeg tau ntev.
- Customization Options: Peb muab cov kev daws teeb meem customizable, suav nrog kev ntsuas hluav taws xob, ntsuas tam sim no, hom txuas, thiab cable ntev, kom tau raws li cov neeg siv khoom tshwj xeeb.
- Kev Lag Luam Kev Lag Luam: Nrog kev paub dhau los hauv kev lag luam cable, Jinshenghong Cable nkag siab txog cov kev xav tau tshwj xeeb ntawm lub zog tshiab thiab muab cov kev daws teeb meem los txhawb nws txoj kev loj hlob.
FAQ txog
Q1: yogTshiab Zog Hluav Taws Xob Tsheb Charging Cabletau tshaj cov qauv them nqi sib txawv?
A1: Yog lawm, lub cable tuaj yeem hloov kho kom tau raws li ntau yam qauv kev them nqi, suav nrog Hom 1 thiab Hom 2 txuas, ua kom muaj kev sib raug zoo nrog cov chaw nres tsheb sib txawv.
Q2: Lub cable puas tuaj yeem tiv taus sab nraum zoov?
A2: Yog lawm, cov khoom siv lub tsho cable yog tsim los ua huab cua-resistant, muab kev tiv thaiv tiv thaiv UV rays, los nag, thiab lwm yam ib puag ncig uas feem ntau ntsib hauv qhov chaw them nyiaj sab nraum zoov.
Q3: Puas yog lub cable haum rau ob qho tib si hauv tsev thiab cov chaw them nyiaj pej xeem?
A3: Yog lawm, lub cable yog tsim los siv nyob rau hauv ob qho tib si nyob thiab pej xeem them chaw nres tsheb, muab ntau yam kev daws teeb meem rau cov xwm txheej sib txawv.
tiv tauj peb
Xaiv Jinshenghong Cable kom zooTshiab Zog Hluav Taws Xob Tsheb Charging Cables thiab txhim khu kev qha kev daws teeb meem rau hluav taws xob tsheb them infrastructure.
Tiv tauj peb hnub no los tham txog koj qhov project yuav tsum tau thov thiab thov cov lus hais.
